Connect to thousands of certified instantly with this simple USB stick. It’s an easy and compact way to add a Z-Wave gateway to your , and is compatible with the along with many other devices and platforms such as  (with the ).

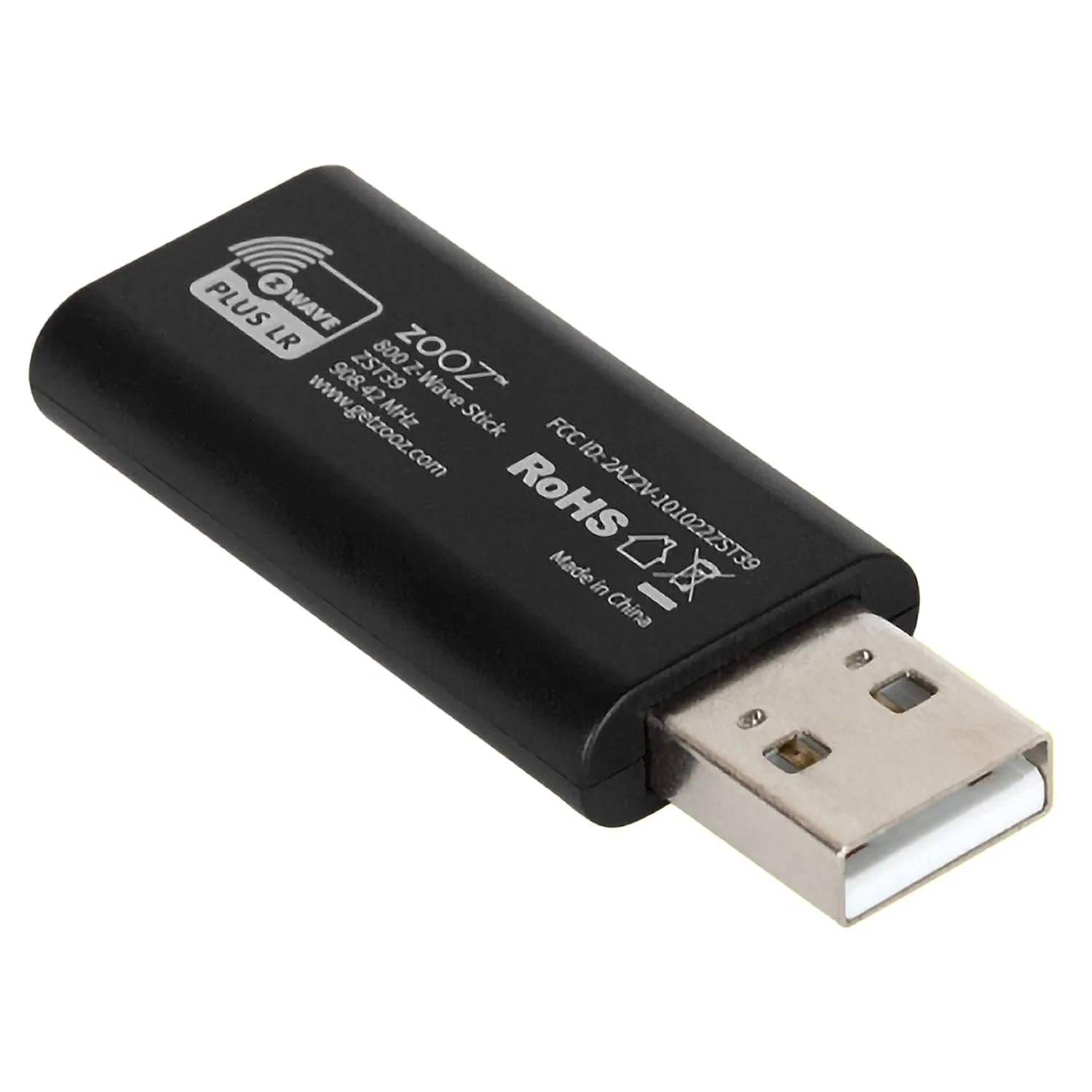

This Zooz ZST39 USB Z-Wave gateway is equipped with the latest 800 series chip for more signal coverage and improved performance, and runs the UK/EU 868.42 MHz frequency (no Z-Wave Long Range, as this is only currently available in the USA).

Get more out of your system thanks to the authenticated S2 security and SmartStart features that offer a protective layer to your set-up.

Note: You'll need a dedicated Raspberry Pi/PC/laptop and Z-Wave home automation software (such as Home Assistant) to install and use this product.

How it works

You’ll need home automation software installed on a dedicated (always on) computer to host the device. Once you plug the 800LR Stick into a standard USB port in your PC, Mac, or Raspberry Pi, your smart home will start speaking Z-Wave – the most popular language for home automation devices.

You’ll be able to control, monitor, and schedule scenes or rules for over 200 Z-Wave devices within a single network. All of it will run locally unless you decide to move your smart home to the cloud to add remote access. The 800LR Stick will work out of the box with the most popular operating systems.

It’s compatible with your favourite software like .

Features

• All NEW 800 Series Z-Wave USB stick: incredible signal, super secure, and fast network!
• Updated command class library: build your Z-Wave software with confidence and support of all of the latest features
• Supports S2 security and SmartStart
• 800 Series Z-Wave Chip: get more signal coverage and improved performance thanks to the latest generation Z-Wave chip
• 5-year warranty extended warranty once you and lifetime tech support
• Expert users only: please note that this product comes with basic hardware support and does not include any tech support for the home automation software or host hardware you decide to pair it with
• What you'll need: a dedicated computer and home automation software with a mobile interface

Specifications

• Z-Wave Frequency: 868.42 MHz (EU, UK - no Z-Wave Long Range)
• Power: 4.75-5.25 VDC (provided via USB)
• SDK: 7.18.3
• USB Version: V1.1, 12 Mbps
• Wireless Range: Up to 250 feet indoors in traditional mesh network (depending on local conditions)
• Operating Temperature: -10°C - 40°C

• Installation and Use: Indoor only
• Dimensions: length: 50.8 mm, width: 20.32 mm, depth: 7.62 mm

Resources

• before attempting a firmware update on your Z-Wave stick.
• Product number: Zooz ZST39
• UPC: 853478006391

Package Contents

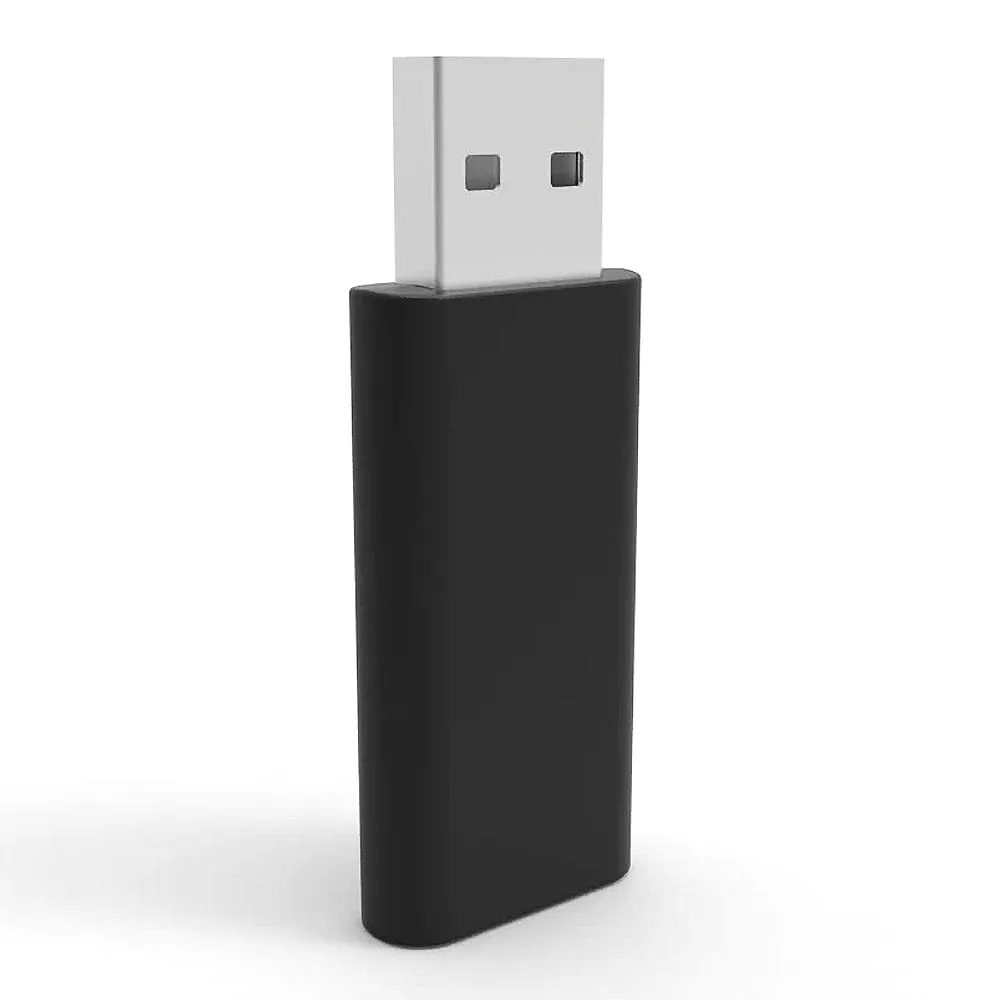

• 1x Zooz 800-Series Z-Wave USB Stick (868.42 MHz EU/UK)
