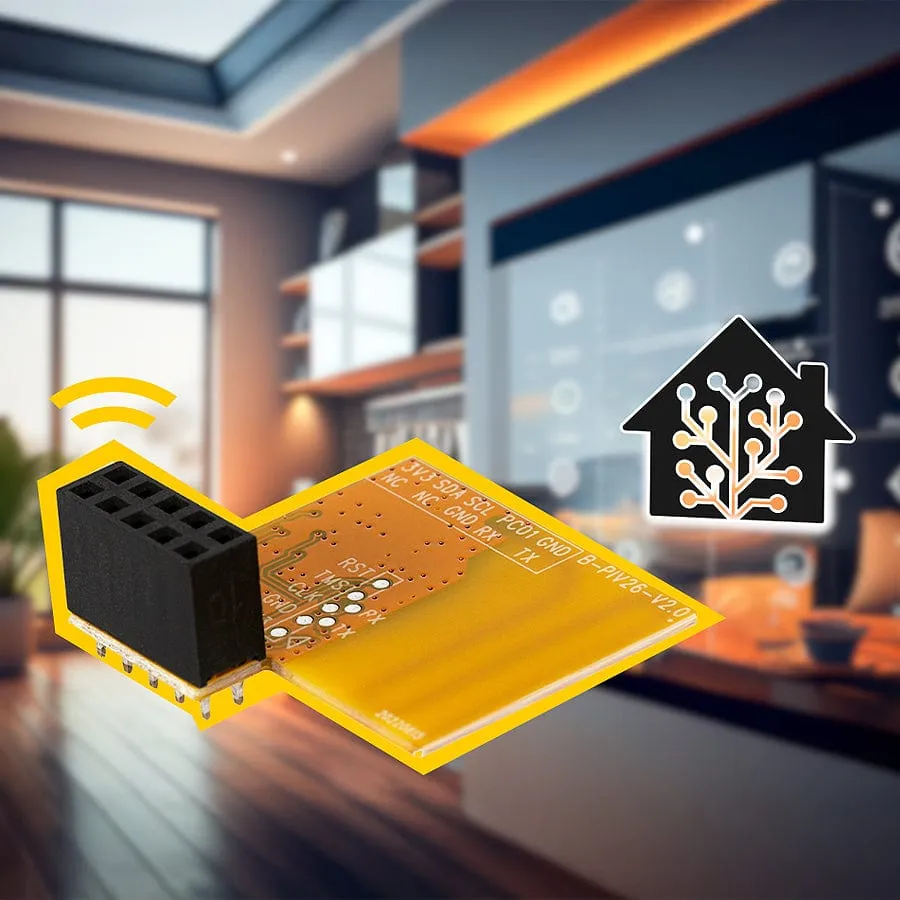

This small GPIO board connects your Raspberry Pi to . It's a GPIO Z-Wave gateway for your running (with the ) or other compatible home automation software.

The module allows you to include Z-Wave technology in your setup quickly and in the most compact way for Raspberry Pi users, allowing you to create a Z-Wave network to add up to 200 other  for your /smart home system.

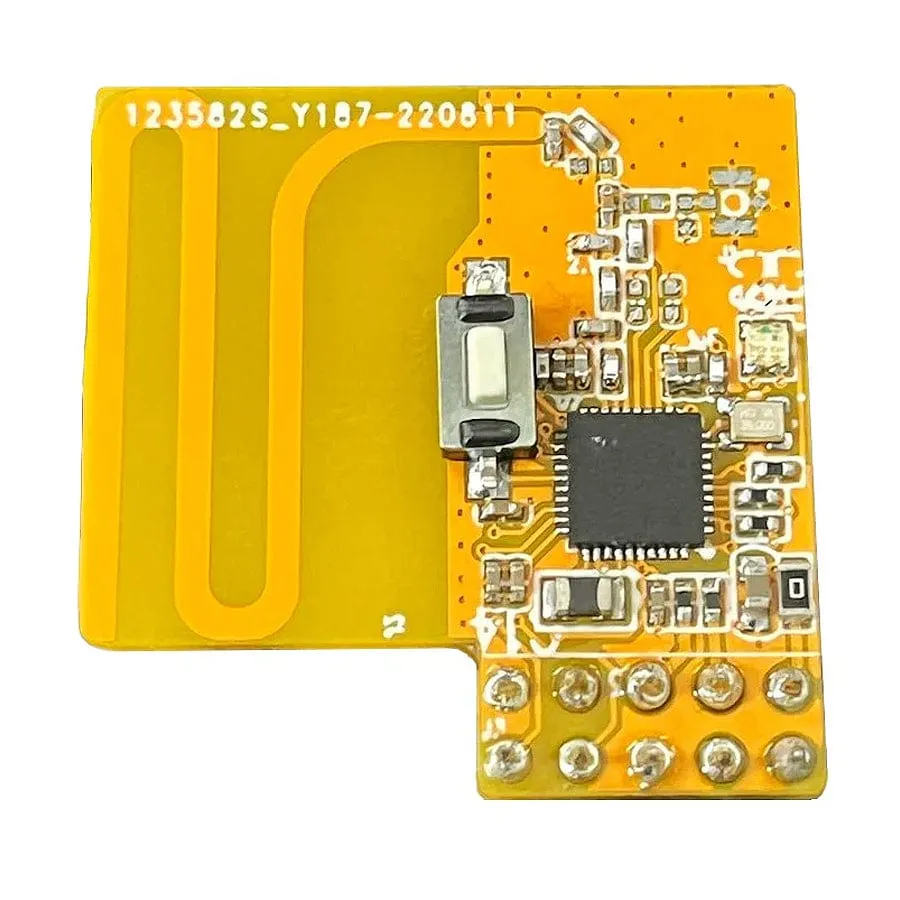

This Zooz ZAC93 GPIO Z-Wave gateway is equipped with the latest 800-series chip for more signal coverage and improved performance, and runs the UK/EU 868.42 MHz frequency (no Z-Wave Long Range, as this is only currently available in the USA).

Get more out of your automation system thanks to the authenticated S2 security and SmartStart features that offer a protective layer to your set-up.

.

How it works

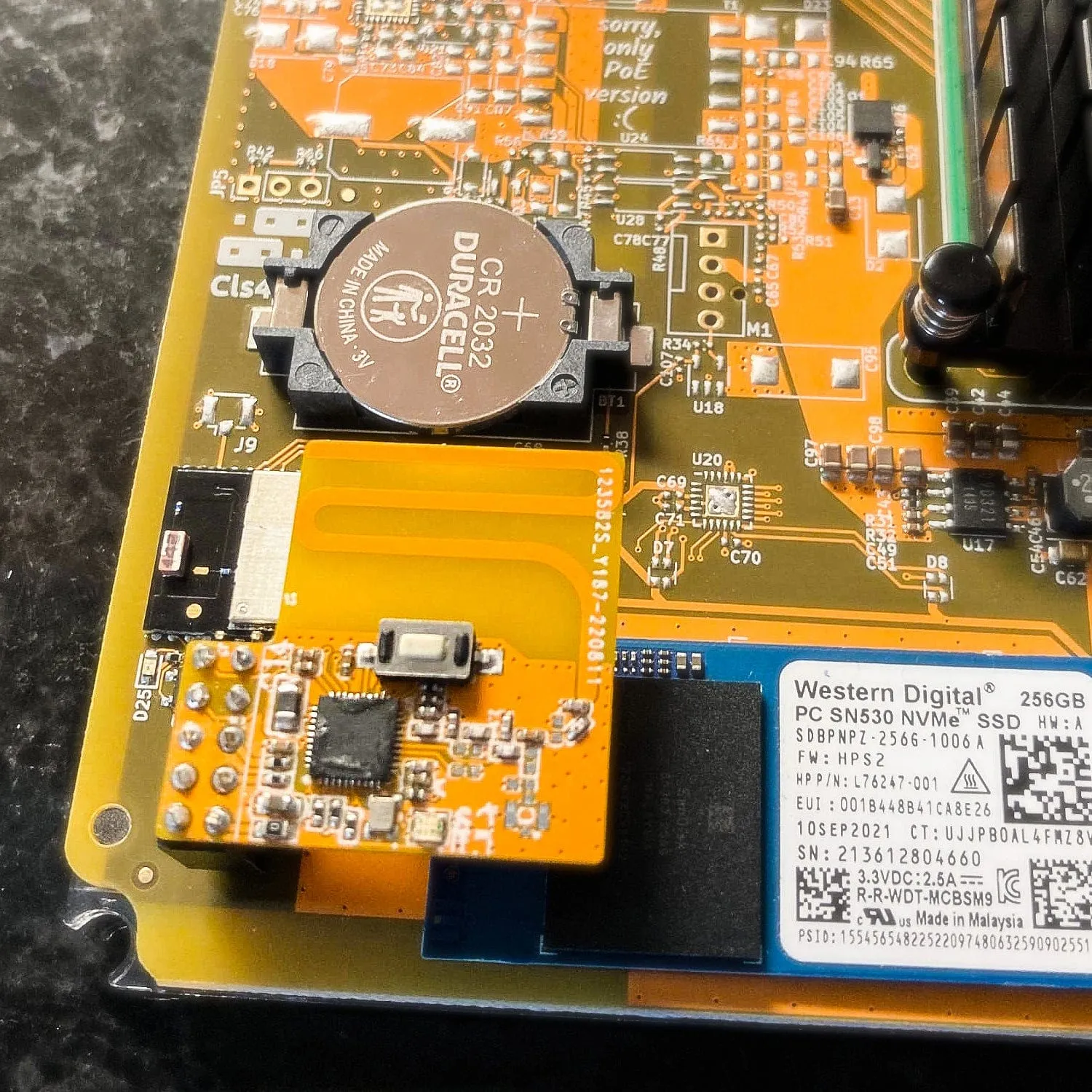

This module mounts directly to the GPIO pins of your or . You’ll also need a home automation software of your choice to access the user interface of your smart home (Home Assistant is our go-to).

With Z-Wave, you have the power to manage and program scenes or automation for up to 200 devices in a single network. Keep it all local and private or add remote access for cloud connectivity if needed.

Features

• All NEW 800 Series Z-Wave Long Range GPIO module: incredible signal, super secure, and fast network!
• A simple add-on to your project: made for Raspberry Pi and Home Assistant Yellow hardware (sold separately)
• The latest Z-Wave command class library: a solid and reliable foundation for your smart home
• Equipped with S2 security and SmartStart: design your network with confidence using UL-grade encrypted communication
• 800 Series Z-Wave Chip: get more signal coverage and improved performance
• 5-year warranty: extended warranty once you and lifetime tech support
• Expert users only: please note that this product comes with basic hardware support and does not include any tech support for the home automation software or host hardware you decide to pair it with
• What you'll need: Raspberry Pi or Home Assistant Yellow and home automation software

Specifications

• Z-Wave Frequency: 868.42 MHz (EU, UK - no Z-Wave Long Range)
• Power: 3.3 VDC
• SDK: 7.18.3
• Wireless Range: Up to 250 feet indoors in a traditional mesh network
• Operating Temperature: -10°C - 40°C

• Installation and Use: Indoor only
• Dimensions: 27.94mm x 27.94mm

Resources

• Product number: Zooz ZAC93
• UPC: 853478006933

Package Contents

• 1x Zooz ZAC93 800-Series Z-Wave GPIO Module

Raspberry Pi/HA Yellow not included
