Product Details
＋

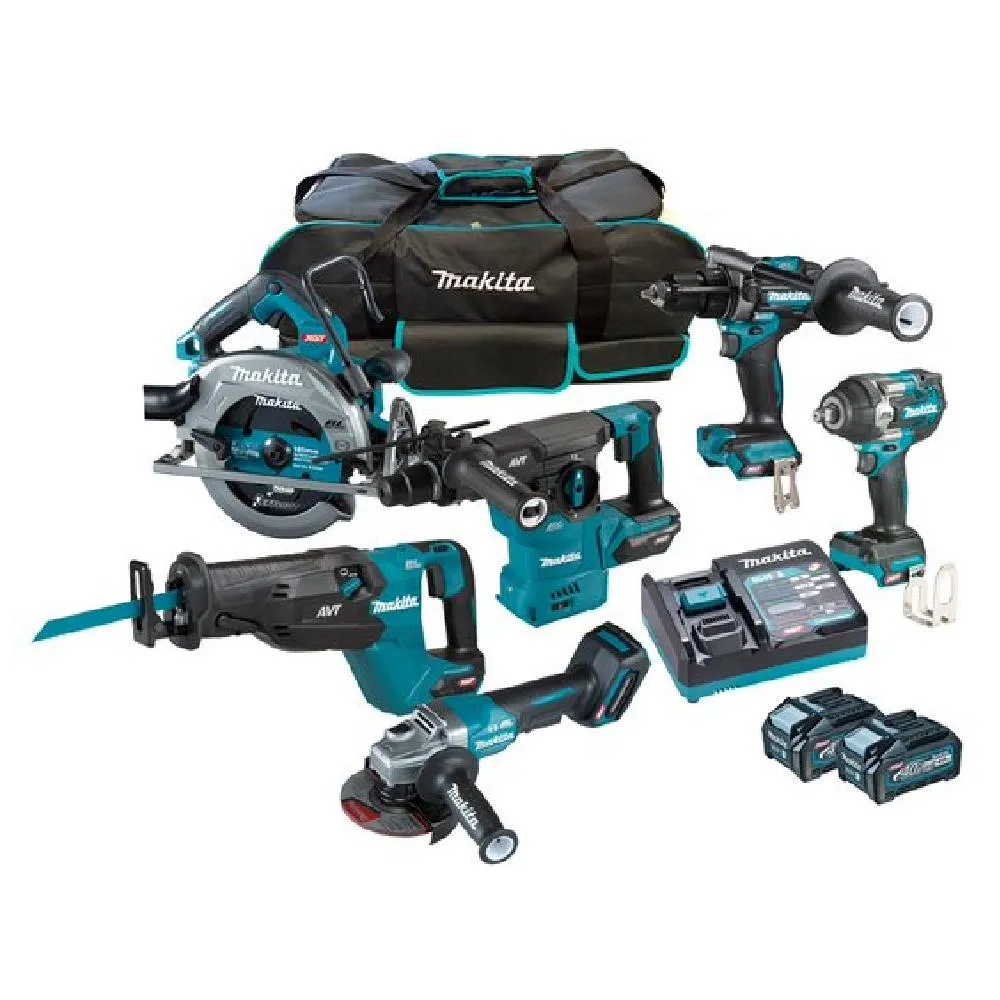

Includes:
- 40V Max Brushless Hammer Driver Drill (HP001GZ)
- 40V Max Brushless 1/2“ Impact Wench (TW007GZ)
- 40V Max Brushless 125mm Paddle Switch Angle Grinder (GA013GZ)
- 40V Max Brushless 185mm Circular Saw (HS003GZ)
- 40V Max Brushless 30mm Rotary Hammer (HR008GZ01)
- 40V Max Brushless Reciprocating Saw (JR002GZ)
- 2x 40V Max 4.0Ah Battery (BL4040)
- 40V Max Single Port Rapid Charger (DC40RA)
- Tote Bag (832367-6)

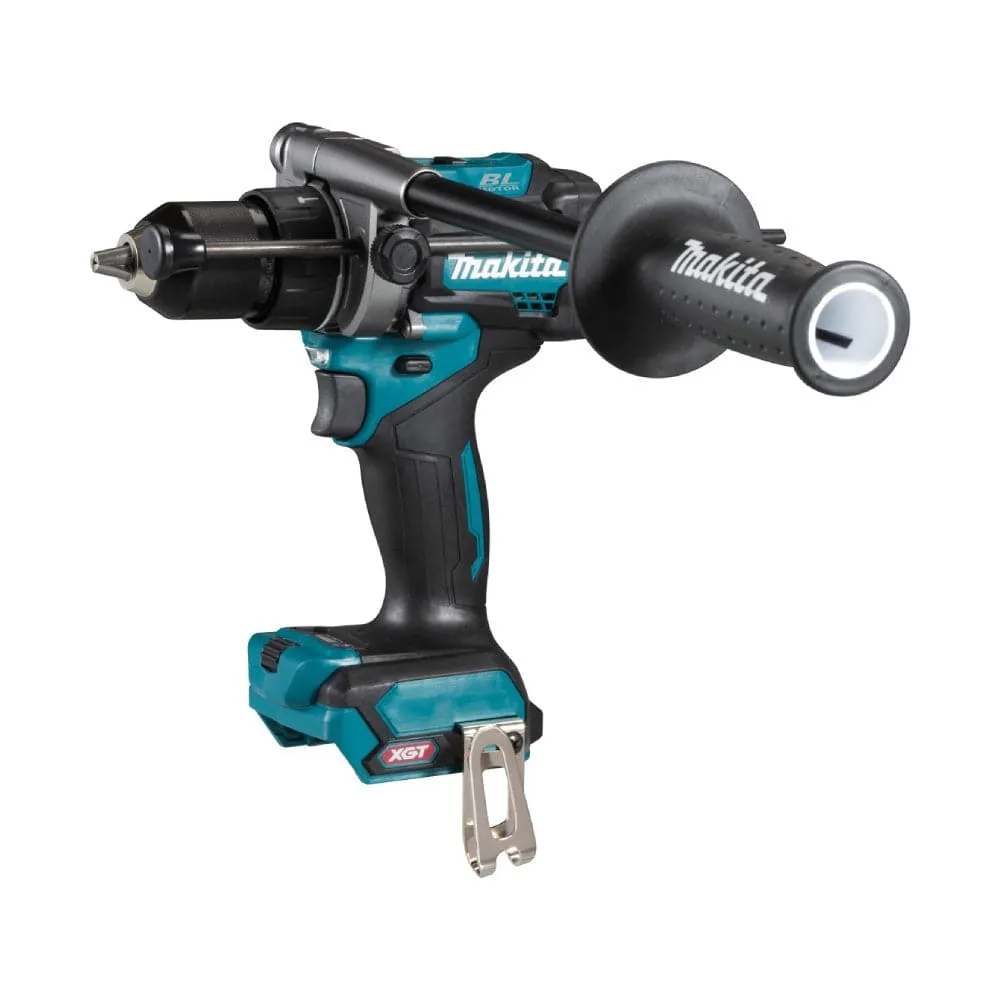

Features:
- Heavy duty power with 141Nm peak torque
- Active feedback sensors shut down the tool in the event of a kickback
- Massive drilling capacity with 152mm hole saw & 50mm auger bit capacity
- 35% faster drilling speed compared with the equivalent 18V model
- Electronic clutch for selecting between 41 torque range settings
Specifications:
- Impact Rate:
- Hi: 0 - 39,000ipm
- Lo: 0 - 9,750ipm
- Max. drilling capacities in masonry: 20mm
- Max. drilling capacities in steel: 20mm
- Max. drilling capacities in wood:
- Auger bit: 50mm
- Self-feeding bit: 76mm
- Hole saw: 152mm
- Max. lock torque: 125Nm
- Max. peak torque: 141Nm
- Max. tightening torque:
- Hard: 140Nm
- Soft: 68Nm
- No Load Speed:
- Hi: 0 - 2,600rpm
- Lo: 0 - 650rpm
- Overall Length: 182mm
- Skin weight: 2.0kg
- Voltage: 40V Max
- Weight (with battery): 3.0kg (BL4040)

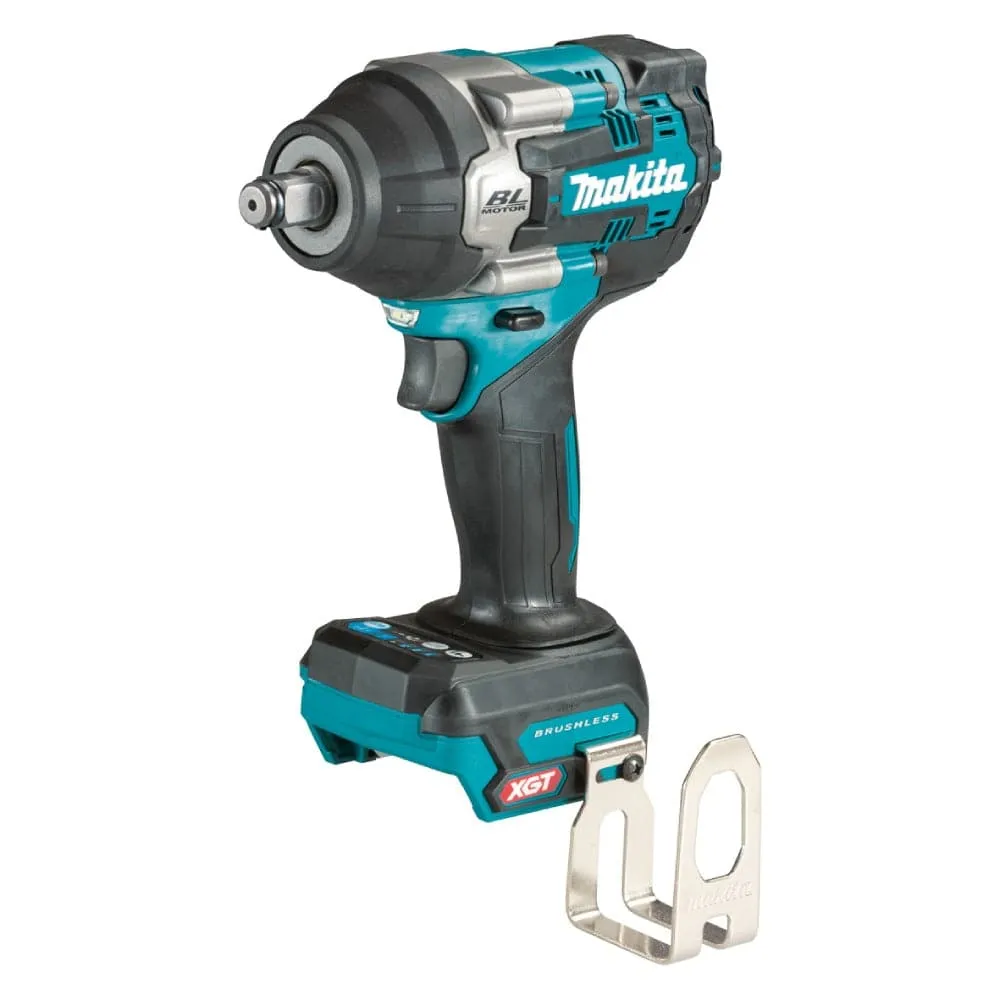

Features:
- High power in a compact design with 1,100Nm nut busting torque
- 40V Max XGT battery continues to perform in continuous heavy duty application
- Optimised application selector with 6 modes adapting speed and impacts for each task
- Full speed mode shortens the distance of trigger travel required to hit full speed
- 4 Stage power selection for optimum rpm and fastening torque
Specifications:
| Drive Shank | 1/2" Square Friction Ring |
| Impact Rate | Max: 0 - 2,900ipm Hard: 0 - 2,700ipm Med: 0 - 1,900ipm Soft: 0 - 1,200ipm |
| Max. capacities high tensile bolt | M10-M16 |
| Max. capacities standard bolt | M10-M24 |
| Max. fastening torque | Max: 760Nm Hard: 320Nm Med: 200Nm Soft: 150Nm |
| No Load Speed | Max: 0 - 2,300rpm Hard: 0 - 1,900rpm Med: 0 - 1,200rpm Soft: 0 - 600rpm |
| Nut busting torque | 1,100Nm |
| Skin weight | 2.3kg |
| Voltage | 40V Max |
| Weight (with battery) | 3.3kg (BL4040) |

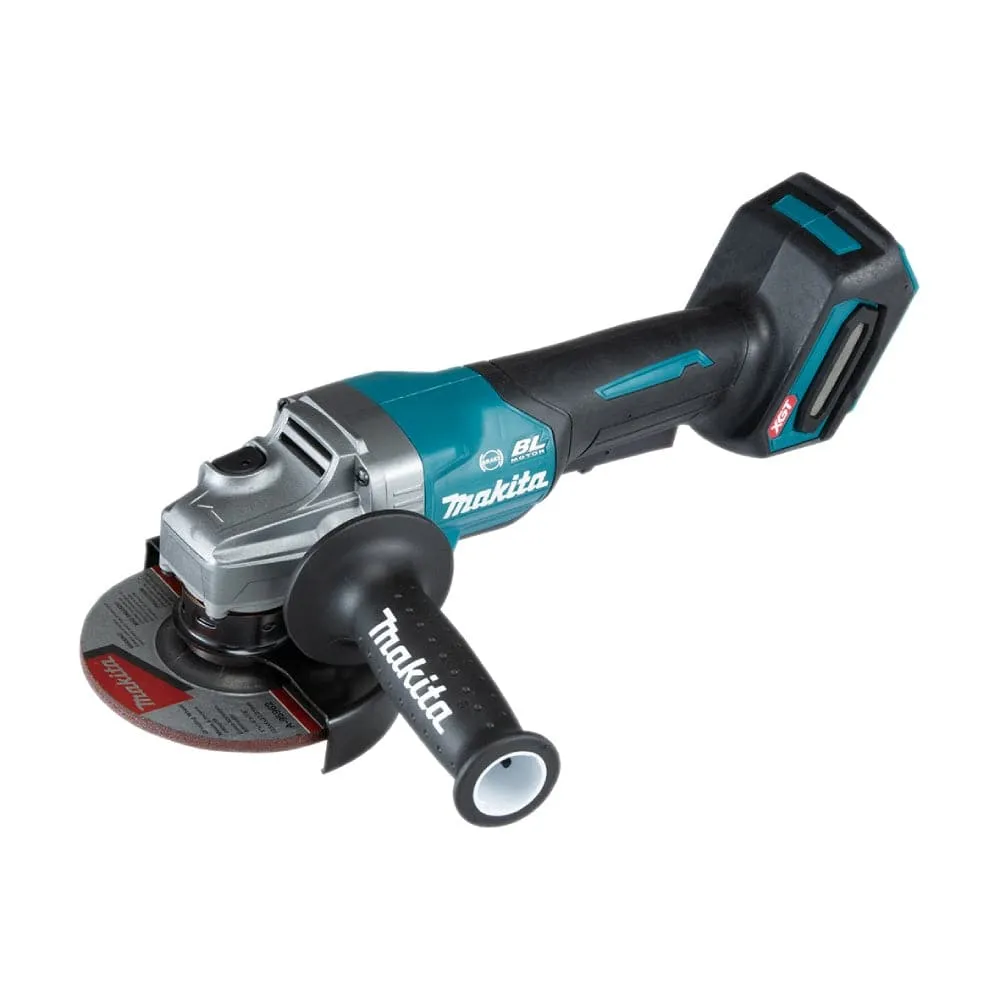

Features:
- Heavy duty power cutting 40% faster than the 18V equivalent model
- High durability with advanced protection against heat and dust
- Active feedback sensors shut down the tool in the event of a kickback
- Enhanced safety features including an electric brake, soft start and anti-restart
- Improved heat dissipation capacity allows for continuous heavy duty use
Specifications:
- Electric Brake: Yes
- No Load Speed: 8,500rpm
- Overall Length: 410mm
- Skin weight: 2.2kg
- Switch Type: Paddle Switch
- Voltage: 40V Max
- Weight (with battery): 3.2kg (BL4040)
- Wheel diameter: 125mm (5")

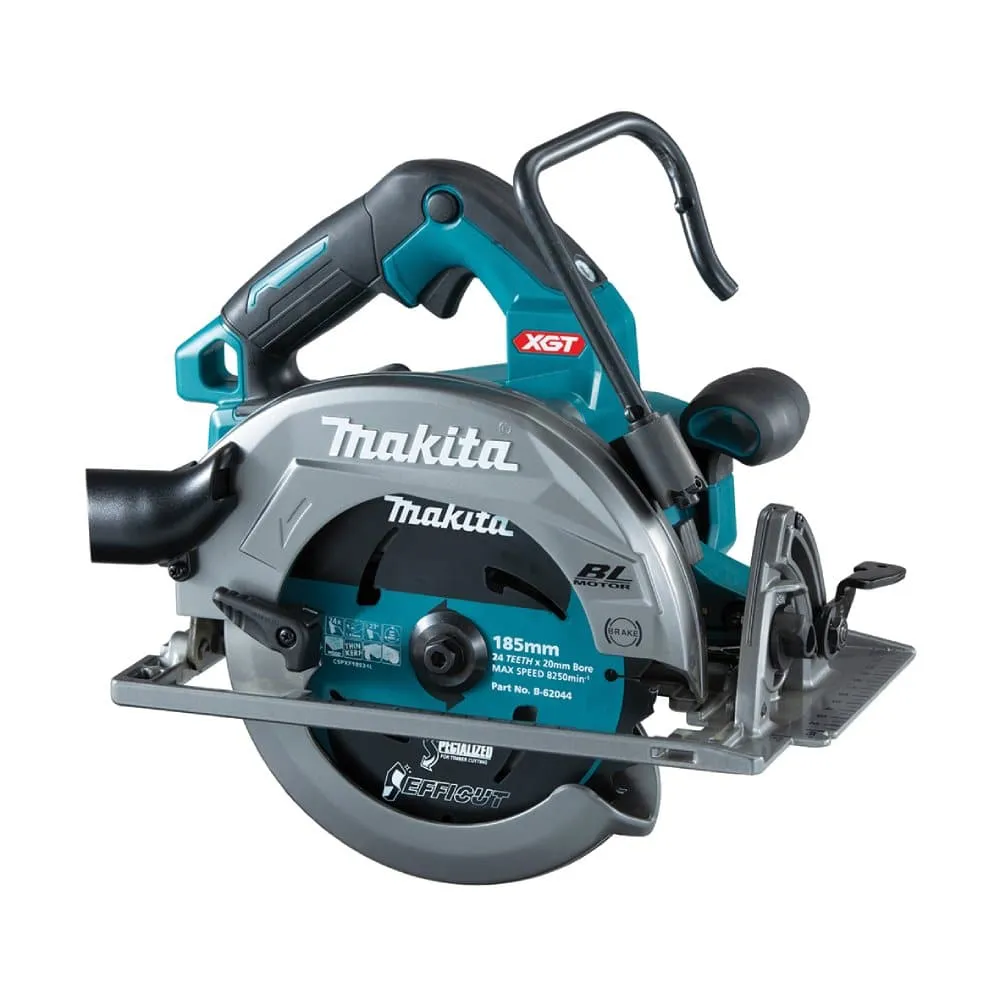

Features:
- Heavy duty power with cutting speeds faster then the equivalent 240V model
- Safety protection with electric brake and soft start for user safety
- Innovative technology with automatic torque drive optimising cutting speed & torque
- Compatible with AWS* for wireless connectivity with compatible dust extraction
- Lightweight design and optimised balance improving the tools maneuverability
Specifications:
- Bevel Capacity: 0°- 56°
- Blade Diameter: 185mm (7-1/4")
- Bore Diameter: 20mm
- Max. cutting capacities at 0°: 66mm
- Max. cutting capacities at 45°: 45.5mm
- Max. cutting capacities at max bevel: 34mm
- No Load Speed: 6,000rpm
- Overall Length: 331mm
- Skin weight: 3.4kg
- Voltage: 40V Max
- Weight (with battery): 4.4kg (BL4040)

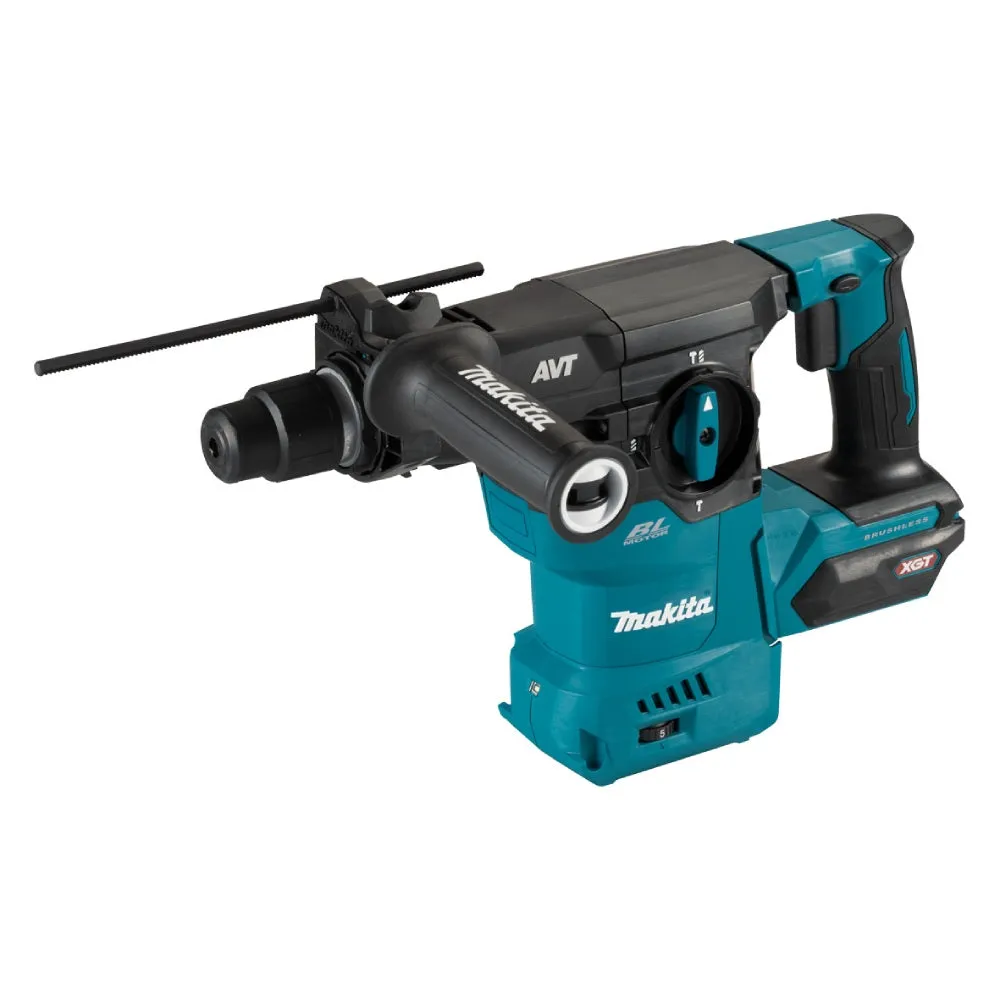

Features:
- Heavy duty power 3.9j^ of impact force
- Anti-vibration technology provides extremely low vibration
- Active feedback sensors shut down the tool in the event of a kickback
- Compatible with AWS* for wireless connectivity with compatible dust extraction
- Dust management compatible with multiple options for various environments
^ Rating in accordance with EPTA 05/2009
*Requires optional wireless transmitter
Specifications:
| Chuck Type | SDS Plus Standard |
| Impact energy | 3.9j |
| Impact Rate | 0-4,500ipm |
| Max. drilling capacities in concrete | TCT Bit: 30mm Core Bit: 80mm Diamond Core Bit: 80mm |
| No Load Speed | 0-840rpm |
| Overall Length | 422mm |
| Skin weight | 5.4kg |
| Sound pressure level | 91dB(A) |
| Vibration | 9.1m/s² |
| Voltage | 40V Max |
| Weight (with battery) | 6.4kg (BL4040) |

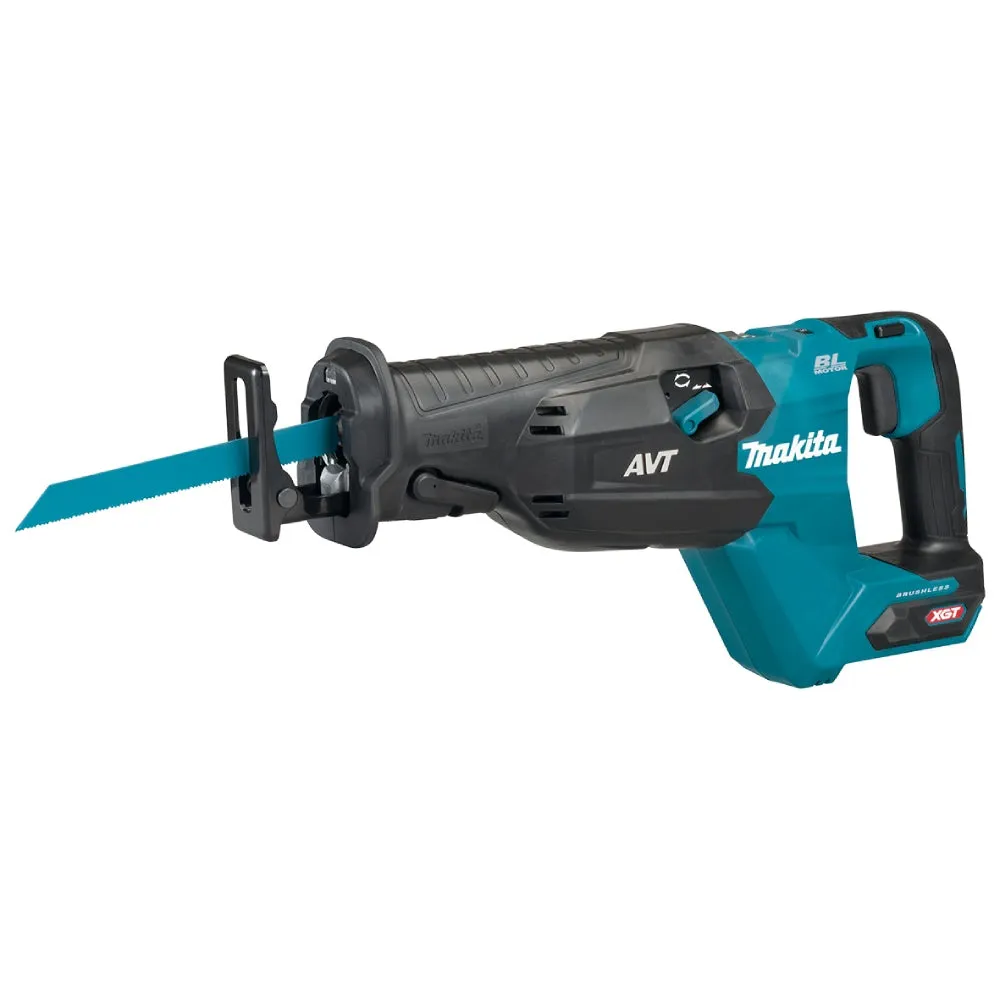

Features:
- High performance cutting with orbital cutting mechanism for heavy load demolition
- Anti-vibration technology provides extremely low vibration of 8.5m/s²
- High durability construction with reinforced self lubricating slider
- Blade ejection lever for convenient removal without having to touch the blade
- Variable speed control dial, high speed for wood cutting & low speed for metal cutting
Specifications:
| Length of Stroke | 32mm |
| Max. cutting capacities in pipe | ø 130mm |
| Max. cutting capacities in wood | 255mm |
| Overall Length | 451mm |
| Skin weight | 3.9kg |
| Strokes per minute | 0-3,000spm |
| Voltage | 40V Max |
| Weight (with battery) | 4.9kg (BL4040) |

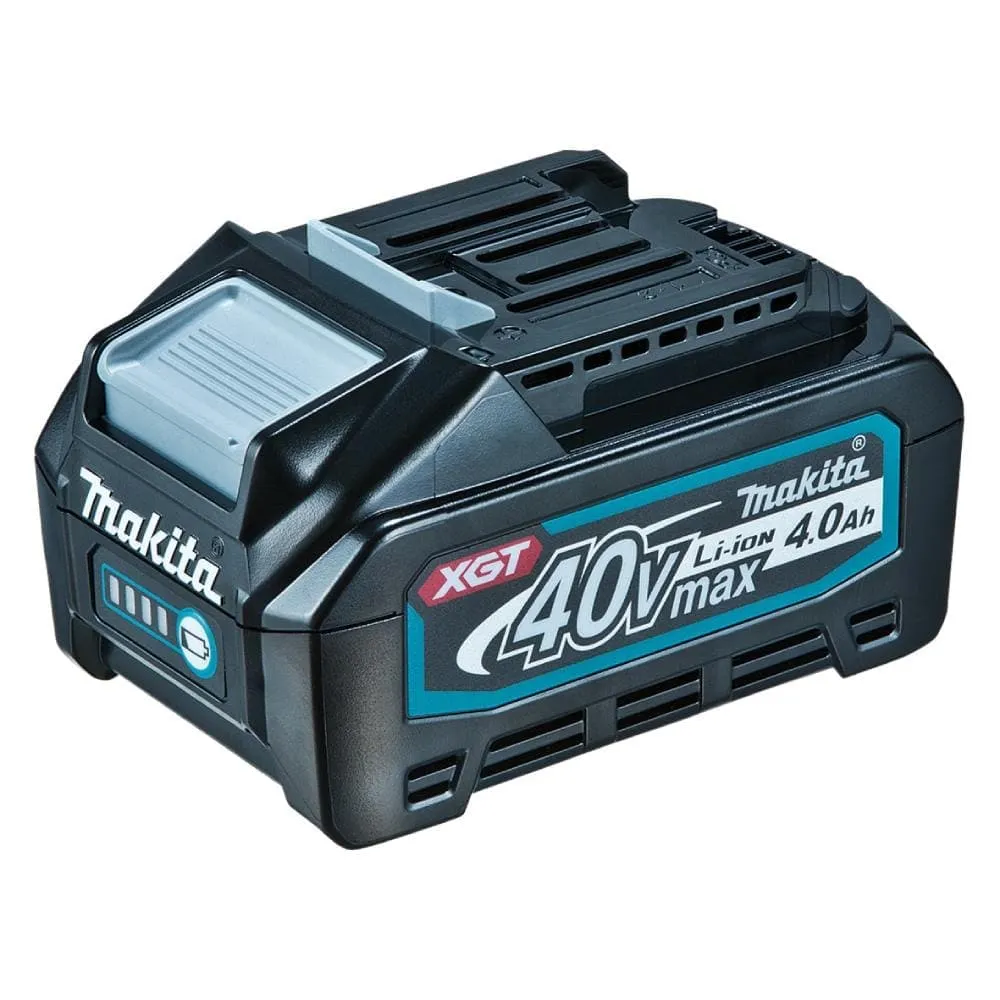

Features:
- Digital communication between the tool & battery for optimised performance
- Heavy duty cell casing significantly improves the batteries impact resistance
- Battery ventilation system maximises battery life
- Short circuit prevention structure protects terminals from dust and moisture
- 3-layer moisture protection shields cells from water ingress
Specifications:
- Cell Capacity: 4.0Ah
- Charge Time: 45mins
- Energy Capacity: 144Wh
- Net Weight: 1.0kg
- Voltage: 40V Max

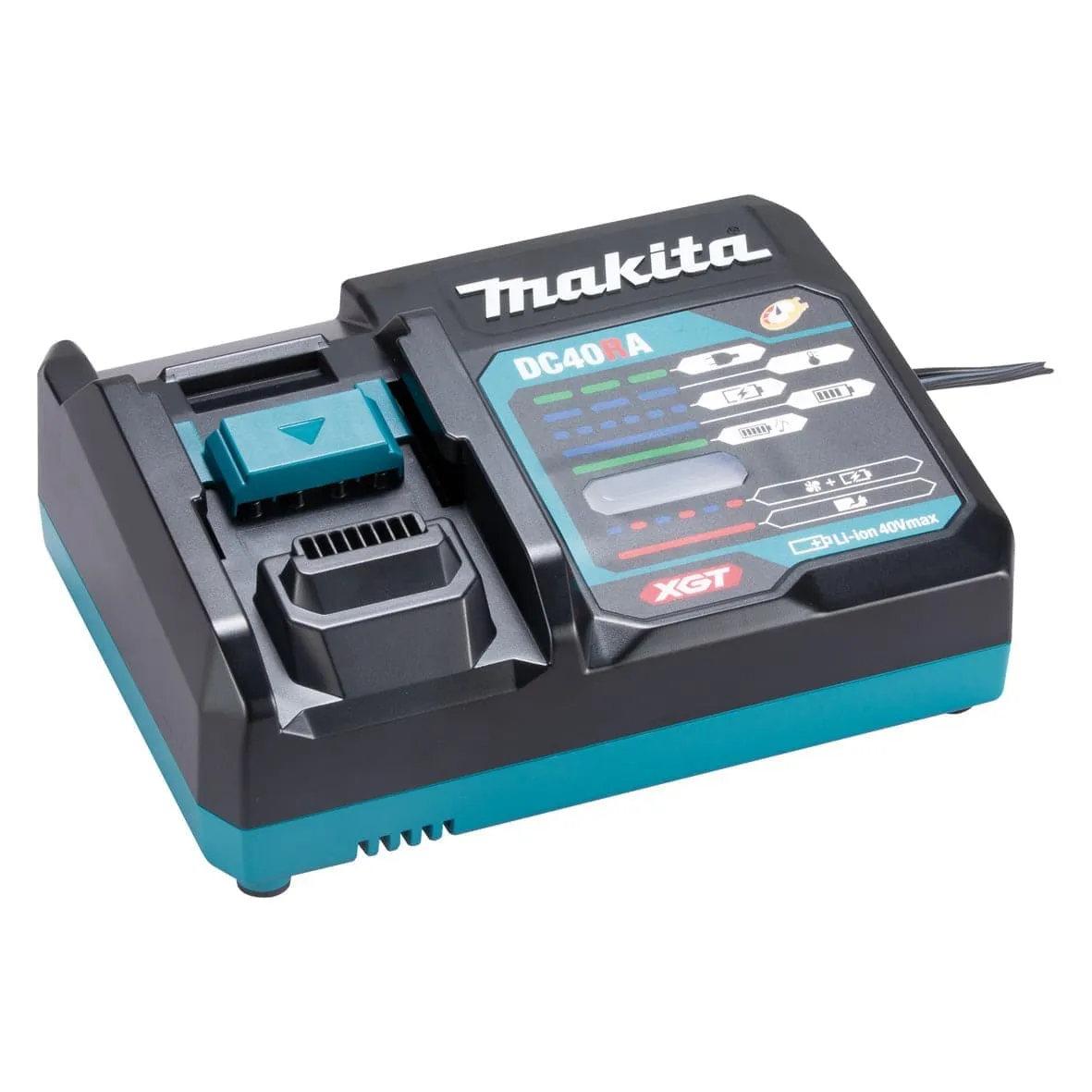

Features:
- Rapid charging system communicates data between battery and charger for optimum charging
- Equipped with dual cooling fans, cooling the battery & charging circuit for rapid charging
- Compatible with ADP10 adaptor (optional accessory) for charging 18V LXT batteries
- Large charging status indicator light & selectable full charge melody
Specifications:
- Charge Time: 45mins (BL4040), 28mins (BL4025), 40mins (BL1860B using APD10)
- Net Weight: 1.0kg
- Voltage: 40V Max
