Product Details
＋

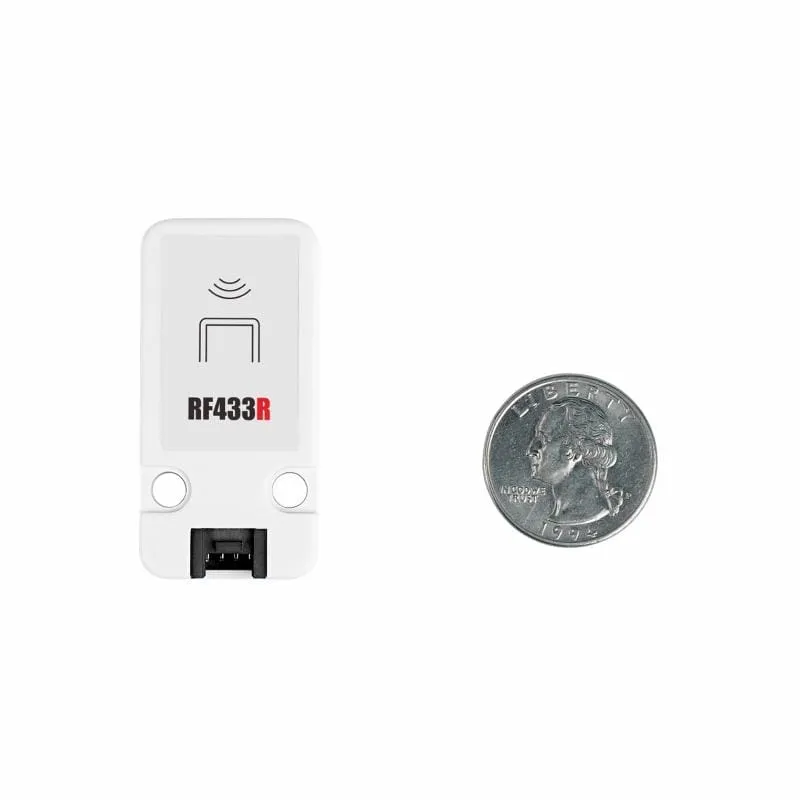

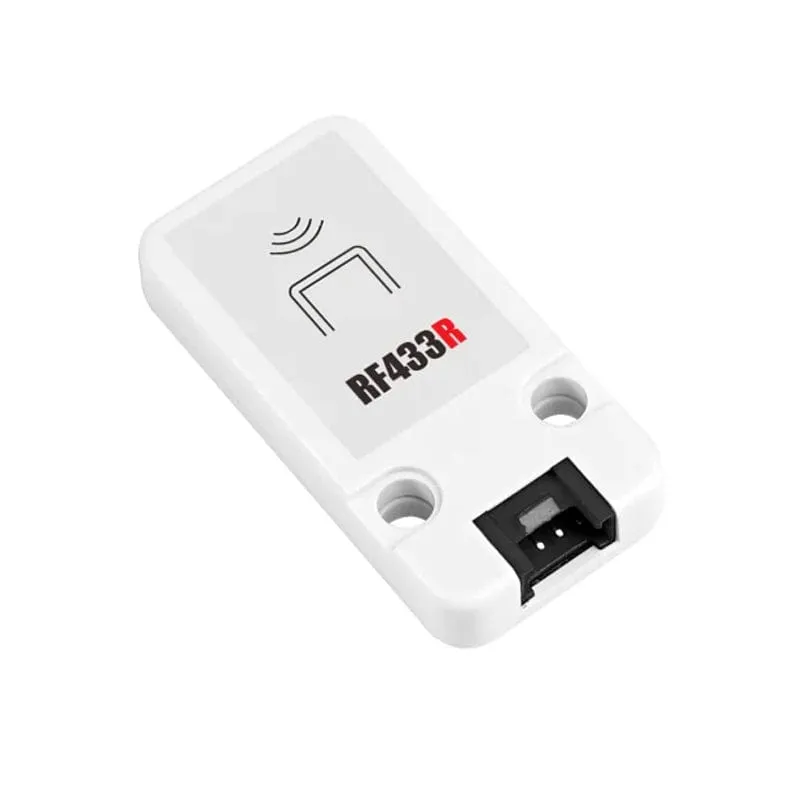

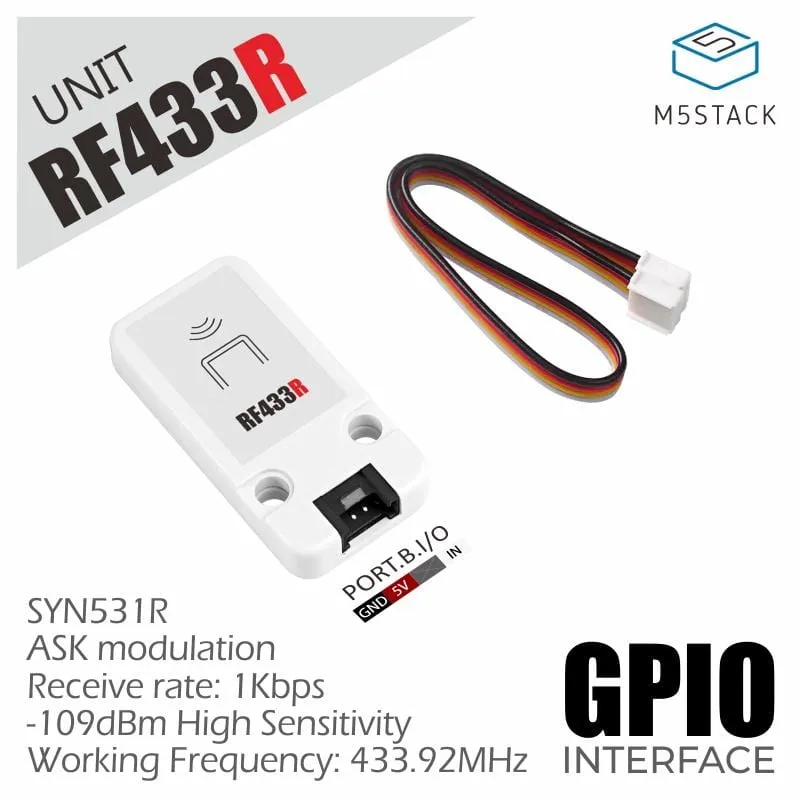

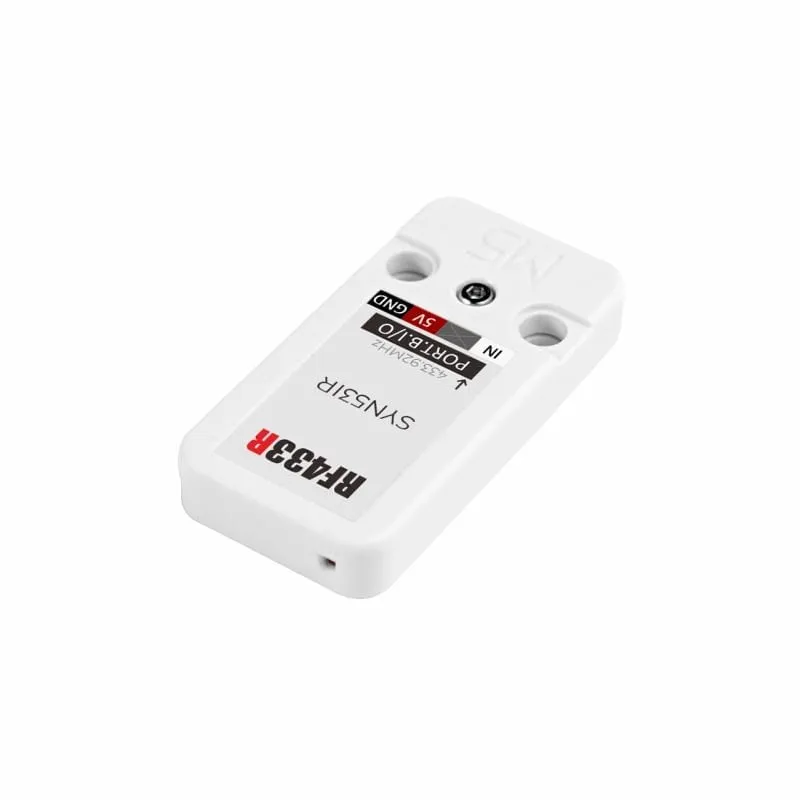

The RF Unit is a RF wireless radio frequency receiver, using a SYN531R radio frequency receiver, its working frequency is 433.92MHz (using ASK modulation) commonly used by wireless controllers, built-in PCB antenna, stable receiving signal distance up to 10M, and its typical receiving sensitivity is -109dBm. The compact housing design can be embedded in a variety of radio frequency remote control applications.
Features
- Operating frequency: 433.92MHz
- -109dBm high sensitivity, receiving rate 1Kbps (ASK modulation)
- PCB antenna
- Excellent selectivity and noise suppression

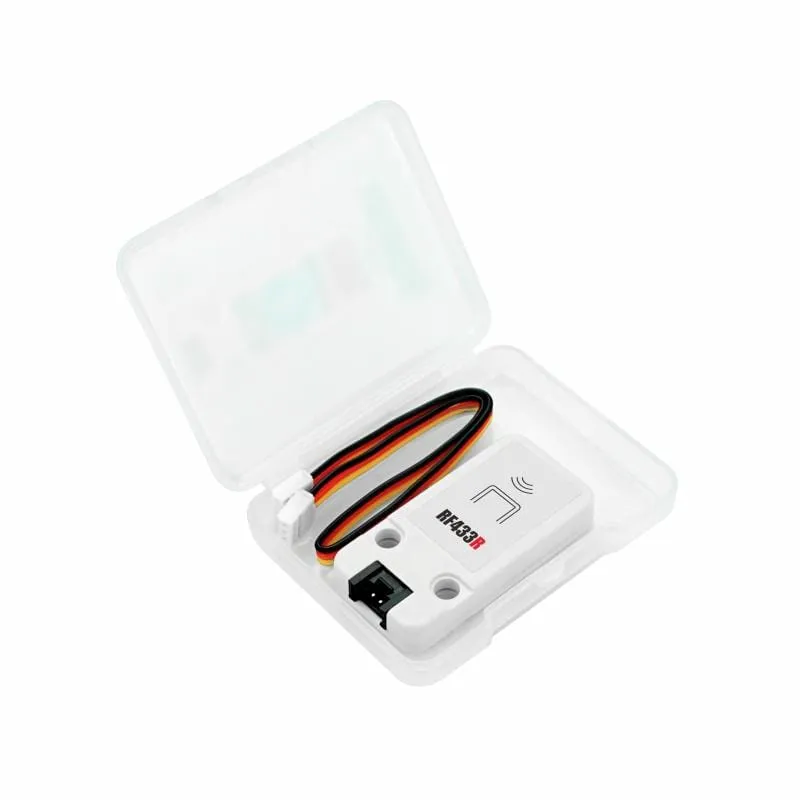

Package Contents
- 1x RF UNIT Unit
- 1x HY2.0-4P Cable
Specifications
| Resources | Parameter |
|---|---|
| Receiver IC | SYN531R |
| Working current | 8mA |
| Stable communication distance | 10M |
| Typical receiving sensitivity | -109dBm |
| Antenna type | PCB antenna |
| Net weight | 6g |
| Gross weight | 21g |
| Product Size | 48 x 24 x 8mm |
| Package Size | 67 x 53 x 12mm |
