Product Details
＋

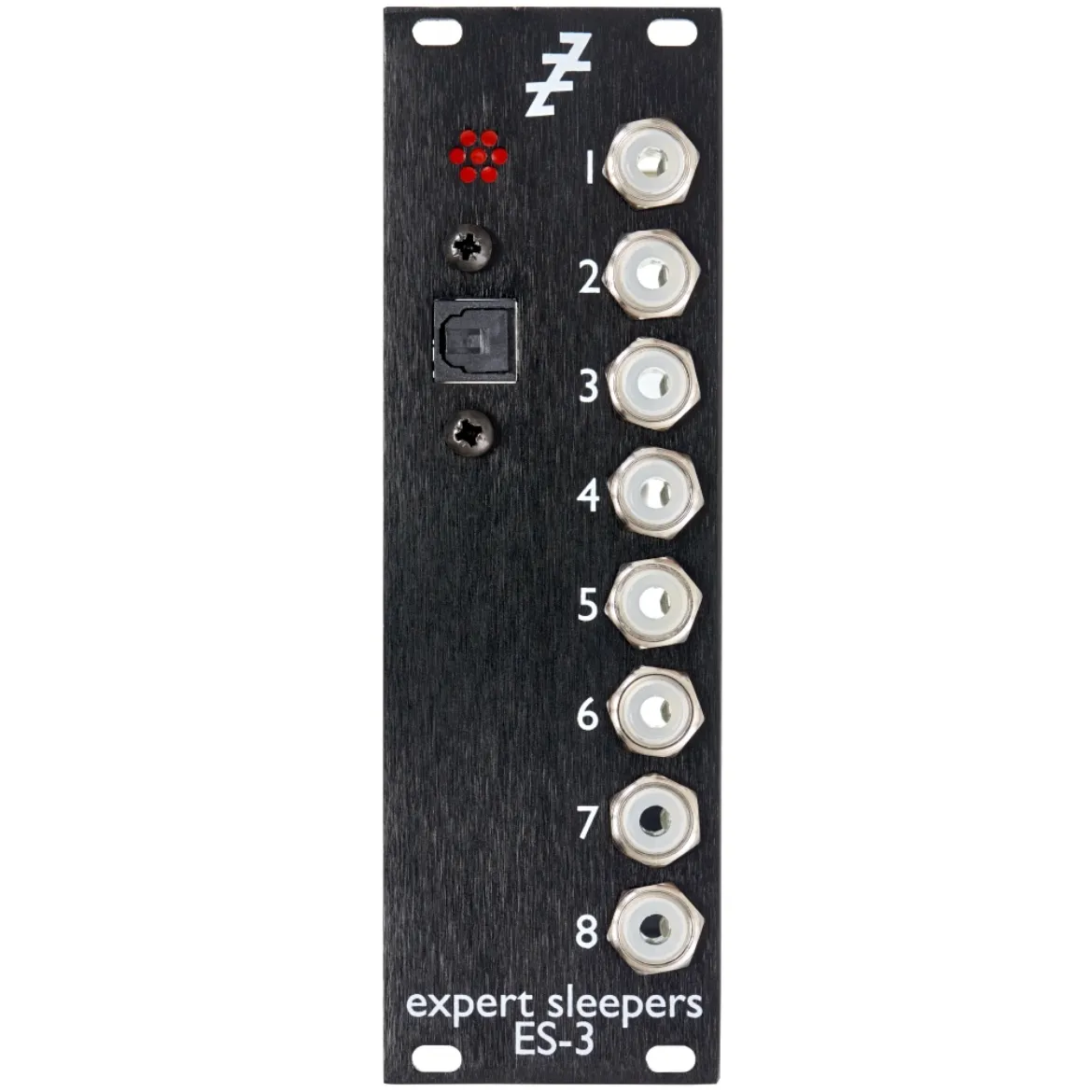

The ES-3 is a Eurorack format module which converts eight channels of ADAT Lightpipe input to DC coupled outputs on 3.5mm jacks, for the ultimate convenience in connection of a DAW directly to analogue synthesizers.
The outputs can be used as control voltages (CVs), for example with software such as Expert Sleepers , and can also be used as audio outputs at high, modular synth-compatible levels.
With the ES-3, a single optical cable is all that is need to bring direct CV control from your DAW right into the heart of a modular system.
Specifications
The ES-3's specifications are as follows:
- Panel width: 8HP
- Module depth: 50mm
- Input connection: optical, ADAT Lightpipe standard
- D/A conversion: 24 bit, 113dB SNR typical
- Output connections: 8x 3.5mm jacks, DC-coupled
- Maximum output voltage: approximately ±10V DC
- Indicators: LED for ADAT clock sync; illuminated sockets indicate output voltage ( ve/-ve)
- Current draw: 148mA on the 12V rail, 18mA on the -12V rail
The front panel is drilled for both Doepfer and Analogue Systems mounting holes (using a 'slot' rather than a single round hole). The power connector is a Doepfer standard 16 way IDC, with -12V furthest from the top of the board.
ES-3 mk4
February 2017 sees the launch of the "ES-3 mk4". Functionally equivalent to the ES-3 mk3, the mk4 adds these improvements:
- Illuminated jack sockets
- Less deep
