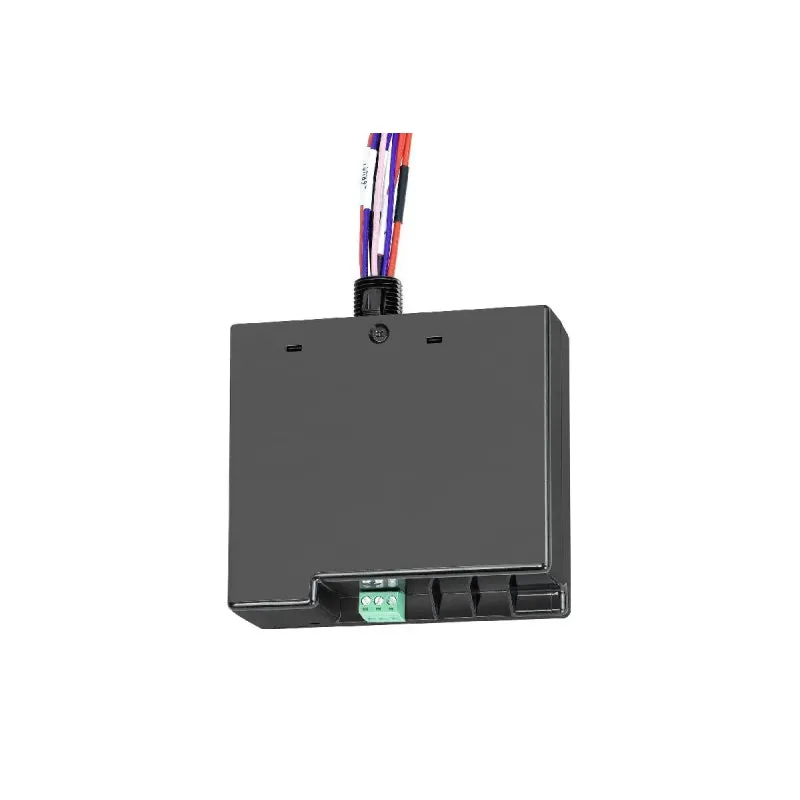

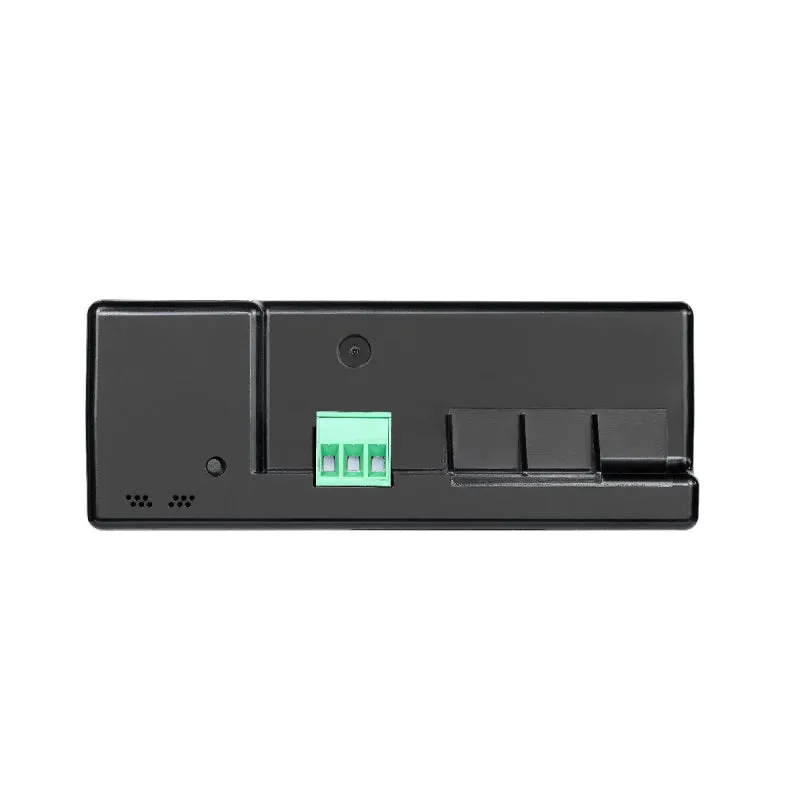

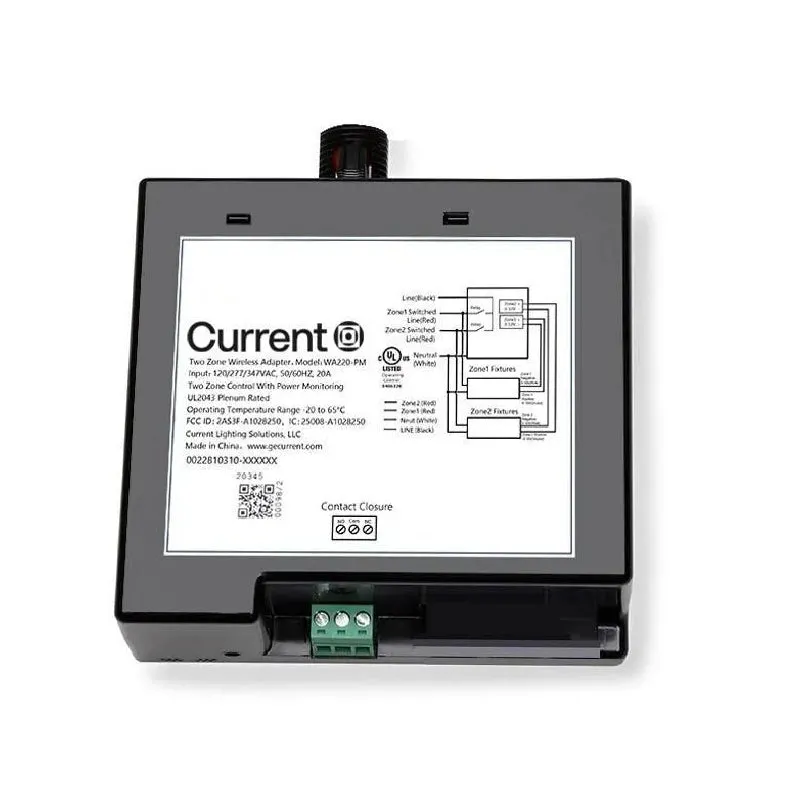

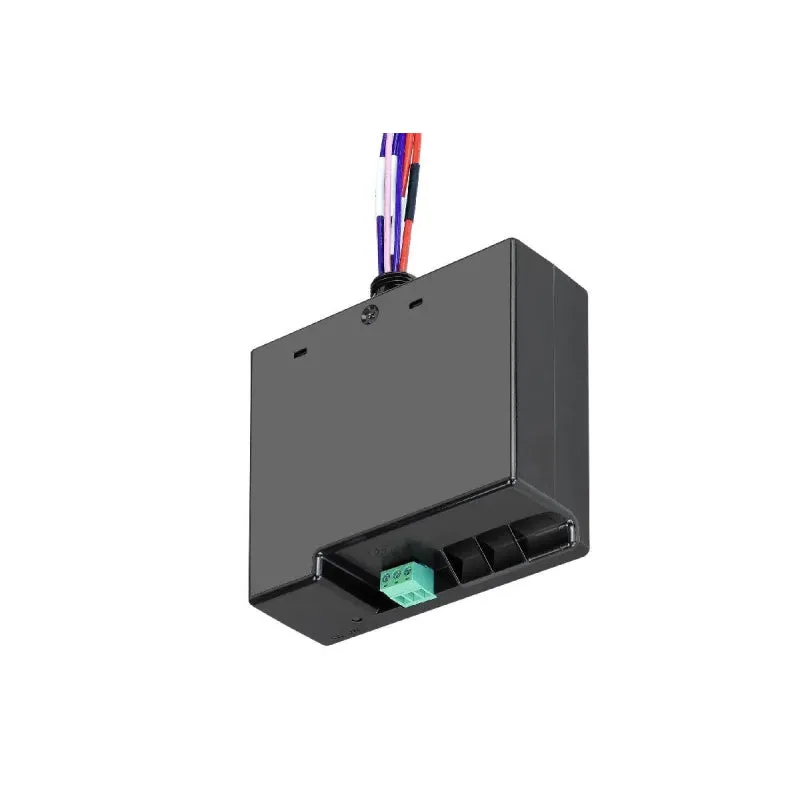

The WA200 Series Room Controllers provide zonal room control of any 0-10V fixtures and plug loads in commercial application spaces. The Room Controllers can control any manufacturer’s 0-10V fixtures and communicate with Daintree Wireless Lighting Control products.

Features

• Finish: Black
• Power 120-347V AC
• Mounting Snap-in 1/2" nipple for junction box mount
• Ballast/Driver: Two zones ON/OFF; control 0-10V dimming
• 20A rated for plug load control
• Knockout mounting for easy installation
• Plenum rated
• Class 1 connections for 0-10V wiring
• WA200 Room Controllers are ideally combined with WOS3 Sensors and WWD2 Wall Controls for a room based controls solutions that can be commissioned on Daintree EZ Connect or Daintree Networked
• Secure wireless communication between lighting sensors, adapters, wall controls and plug loads provides fast installation

Dimensions

• Width: 4.5"


Warranty

• 5 year limited warranty


Documents

Labels:
